  1. Dear Lenka, in PV*SOL we don't display the DST in our results. That is, when you see a time stamp saying August 13 16:00, it means that your watch would show 17:00 if you are in a region with DST (like Europe for example). That is what we do, correct. We decided not to move data in the diagram. The reason is that you would create a data gap of one hour when the time switches from winter to summer, and you would have an overlap of data in autumn, when you switch back. And additionaly the DST rules can get very complex around the globe, so we decided to provide standard winter time. But yes, if you read the diagrams, the time stamps in summer must be moved one hour forward. Kind regads, Martin
  2. Dear José, I am sorry that you are not able to work with the 3D environment anymore. Could you give some more detail, if possible? What exactly happens when you start 3D? Could you provide screenshots, please? And also, please provide the log file "PVSOLpremium.log" that you can find at C:\ProgramData\Valentin EnergieSoftware\log Thanks in advance, Martin
  3. Dear Karam, at the moment PV*SOL doesn't have this feature. It will be released with the next major version, 2021 R1. At the moment it is scheduled for beginning of November 2020. Kind regards, Martin
  4. Dear and, the resolution of large plans is in fact a bit tricky. At least in the project report, where the plans are rasterized before printing them into the pdf or docs file. But you can export the cable plan directly on the cable page, as pdf or svg. In this case, the vectors are not rasterized and you conserve the good quality. See this export as DIN A0 page to pdf: and zoomed in: This does not work for the cable plans at the moment, since they are generated in a different way. But you could export those as dxf (where vector information is still included), and open it in a vector graphics application, like inkscape (it is open source and very powerful, we use it a lot: https://inkscape.org/). Hope that helps, kind regards, Martin
  5. Hi Jimmy, you can right-click on the imported model, choose "Edit" and then rotate the object. Hope that helps, kind regards, Martin
  6. Hi Alvin, the cable page was redesigned a little in recent versions, so if you can, consider updating to a newer version. If not, you could try to de-maximize the window of PV*SOL and then strech the window manually so that you can see the controls better. Kind regards, Martin
  7. Dear Alvin, I guess you will need to rotate the 3D model in another software, e.g. Blender or the like. Which photogrammetry software are you using? And aside from that, having a look at your model, I would recommend to choose only the building you are interested in, plus some surrounding buildings or trees. Try to keep the resolution of the geometries as high as possible, otherwise it will be difficult to get reliable shading simulation results. Kind regards, Martin
  8. Hi Jordn, this is a very interesting project you are working on there! Thank you for sharing this. In general, the climate data used to simulate the PV system have the strongest influence on the symmetry of the results. Other influences can come from the models used to calculate the irradiance on the tilted plane and so forth, the synchronity of the sun's coordinates with the climate data and the like. I just checked this for some locations and climate data sources, and compared the orientations 90° (East) and 270° (West) with 180° (South), all at 30° inclination. Berlin with data from DWD: East brings 82,4 %, West 80,6 % Berlin with TMY data, also DWD, but different source: East brings 82,7 %, West 77,7 % Severn England, SAP 2012 dataset: East brings 82,6 %, West 81,9 % Newquay UK, interpolated in PV*SOL with Meteonorm 7.2: East brings 82,6 %, West 81,4 % So, in contrast to your results, we have a higher irradiation on the East facing systems. This seems strange to me, could you provide a project file, perhaps? You can also send it via private message. Which version of PV*SOL are you using? Kind regards, Martin
  9. Dear and, this is feature that was only recently introduced, in PV*SOL premium 2020 R4. If you are using an older version, consider updating it, then it should work. Thanks and kind regards, Martin
  10. Dear Sander, are you trying to add the module in PV*SOL or on the manufacturer website? Is there any error message that pops up? Could you provide a screenshot perhaps? If you want, you can send it via private message. Thanks in advance, kind regards, Martin

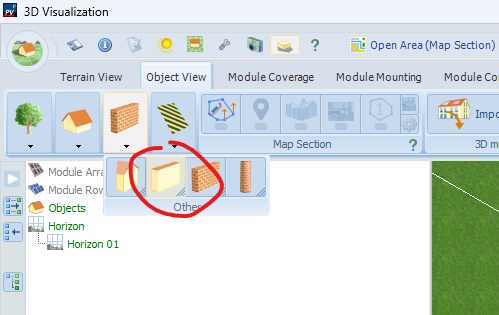

  11. Dear Ricardo, a movement of the underlying map/image is not possible, I am afraid. And unfortunately there is no way to copy objects from one project to another, neither. At least not the simple way. A possible way exists, but this is a hacky workaround. It is unofficial and we don't do support for projects that are broken due to this hack. But if you want to try, you can do the following: Save the first project twice (one for safety, and one you will modify) Create a new project where you select the new map section as desired (with brown surface above). Try to select it in the same zoom level and x/y dimensions Save the new project with a new name (e.g. "new map section.pvprj") Close PV*SOL Use a zip program like 7zip to unzip the file "new map section.pvprj" Amongst the unzipped files, you will find one "MapExtract.png" and inside the folder Visu3D you'll find "SelfCreatedTexture150.png" Copy these two images to another place, these are the new map sections for your old project Unzip also the old project (the one you created for modification from step 1) replace the files "MapExtract.png" and "SelfCreatedTexture150.png" with the ones you copied elsewhere (from step 7) Select all files in that folder and zip them Change the file extension from *.zip to *.pvprj Open the modified project, and you can see that the map section was replaced. Now you would need to adjust the location of the building, but that is possible from within the software. Hope that helps, and sorry if we can only provide this dirty workaround at the moment. Best wishes for you home office experience as well! Kind regards, Martin
  12. developer_mh

    Cables

    Hi Joey, this is label appears when you have a single-phase inverter on a 3-phase grid. If you have two single-phase inverters, two labels appear: If you have three single-phase inverters (or any number of 3-phase inverters), nothing appears, as the phases can be distributed evenly. If you have a number of inverters that is not divisible by 3, the phase configuration appears: Hope that helps, kind regards, Martin
  13. developer_mh

    Solar Park

    yes, at the moment the map import is limited to 800m width and height. You can see if you are within these limits when you choose your map section: If the numbers are red, it is not possible to select the map section because the dimensions are too large. If you need to simulate bigger PV plants, I would recommend to use the normal "2D" way of planning. Kind regards, Martin
  14. developer_mh

    Solar Park

    Hi Rodrigo, a solar park can be easily designed with the module mounting feature in the 3D environment. There you define the mounting system, which modules to take, row distance etc: If you need further help, please don't hesitate to ask. Kind regards, Martin
  15. Hi Jordn, there are some predefined module textures that are available in the 3D mode of PV*SOL. Go to the tab "Module Coverage" and right click on the modules, then choose "Change texture". There you can choose various cell textures and also the color of the backsheet and the framing. Let me know if this is sufficient for you. There is also another way to change the module texture, but this involves some tricky file handling and is an unofficial (and unsupported) approach. But yes, it is possible to integrate the texture you posted: Kind regards, Martin
×
×
