Hello,

Iit possible to create a graph of daily power of the inverter in PVSol Program?

Hi Voltaicsystem,

definitely!

After the simulation has been completed, detailed results can be inspected with the Diagram Editor. To get an overview over a whole year for specific result parameters, Carpet Plots are highly recommended:

Within the Time series graph, data can be copied via a right mouse click:

Please also refer to our online help: https://help.valentin-software.com/pvsol/2022/en/pages/results/diagram-editor/#carpet-plot

I hope this helps!

Best regards,
Frederik

Hello Frederik!

I have a issue with the ''carpet plot'' diagram, it simply will not be added to the presentation.

I've added the PV Sol file for you, if you want to check your self.

I am tearing the hair out of my skull, i do not see where i did my error.

Please help!



PV Sol Stovner Skole - Solcelleanlegg.pvprj

Hello again Frederik or some other moderator.

For some reason the diagram shows in the presentation when i choose the English text language in the presentation.

I am Norwegian, our customers are Norwegian, so we prefer the Norwegian option on the presentation.

Is this a bug? This should be a quick fix, right? I even found the issue, i think. 😂



Hoping for a fast reply, have a good one!





Dear Nils Torbjørn,

Thank you for your inquiry.

It is a bug that the requested diagrams are only shown in the English, but not in the Norwegian customer presentation. Our development department is working on it. The problem will be fixed with one of the next software updates.

Until then, you have the option of exporting the customer presentations in English and Norwegian as doc files and transferring the diagrams from the English to the Norwegian presentation in Word.

Good morning,

I would like to check whether it is possible to obtain the following curves in PV*SOL and, if so, in which section of the software they can be found:

• The projected daily generation curve with hourly resolution (for a typical sunny day and a typical cloudy day).

• The projected annual generation curve with monthly resolution.

I look forward to your response.

Kind regards.

Dear J. Esteban,

Thank you for your inquiry.

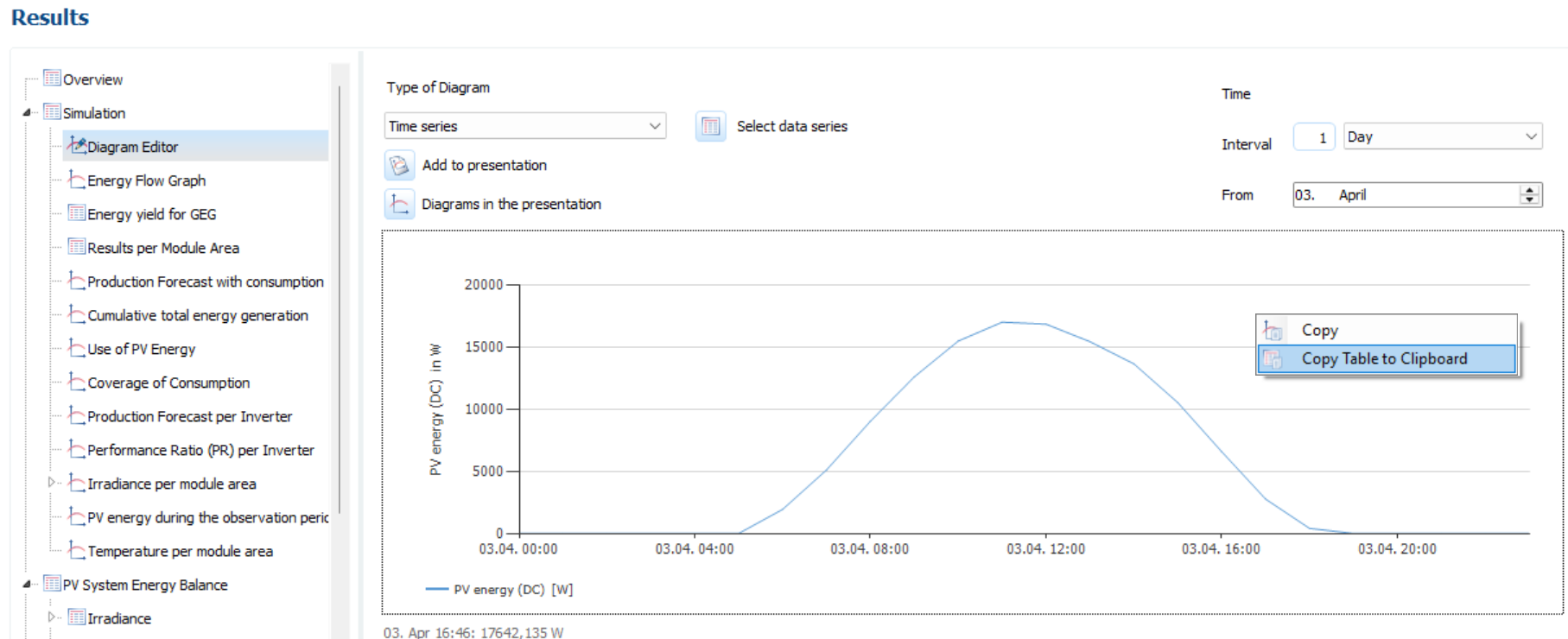

The projected daily generation curve with hourly resolution (for a typical sunny day and a typical cloudy day) can be found in the Diagram Editor after you have performed a simulation with hourly resolution:

The projected annual generation curve with monthly resolution can be found under ‘Production Forecast’:

Hello!

Thank you very much for the clarification! Could you please let me know exactly where I can find the Production Forecast? Or how to display it as a bar chart?

Kind regards.

Edited November 17, 2025Nov 17 by J. Esteban
Update

On 11/17/2025 at 4:17 AM, hotline_oh said:

Dear J. Esteban,

Thank you for your inquiry.

The projected daily generation curve with hourly resolution (for a typical sunny day and a typical cloudy day) can be found in the Diagram Editor after you have performed a simulation with hourly resolution:

The projected annual generation curve with monthly resolution can be found under ‘Production Forecast’:

Dear all,

I kindly request your urgent assistance with the following requirement, which must be submitted to the electricity distribution company:

“Hourly generation forecast curves: Please provide the projected generation curves with hourly resolution, considering a sunny day scenario [kW] vs [h] – Excel format.”

I look forward to your comments.

Kind regards,

J Esteban

Dear J. Esteban,

Thank you for your inquiry.

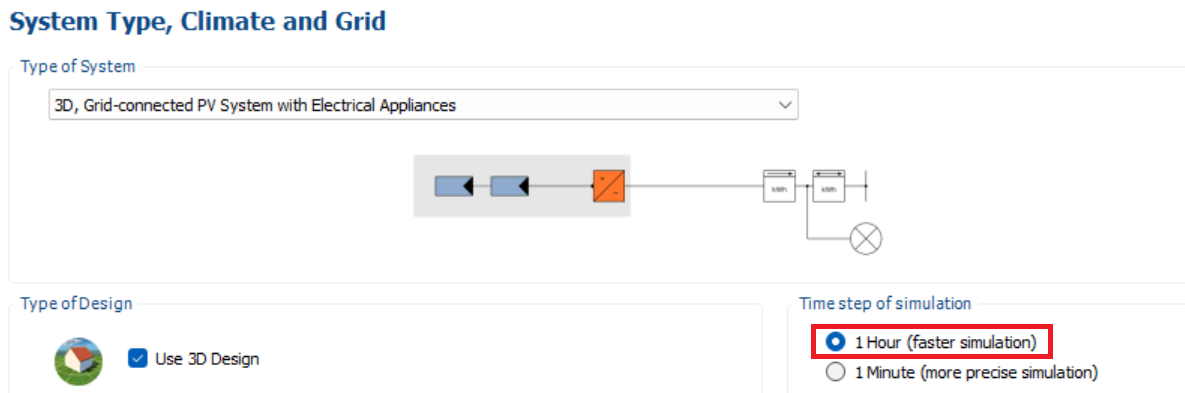

On the "System Type, Climate, and Grid" page, select the hourly simulation step:

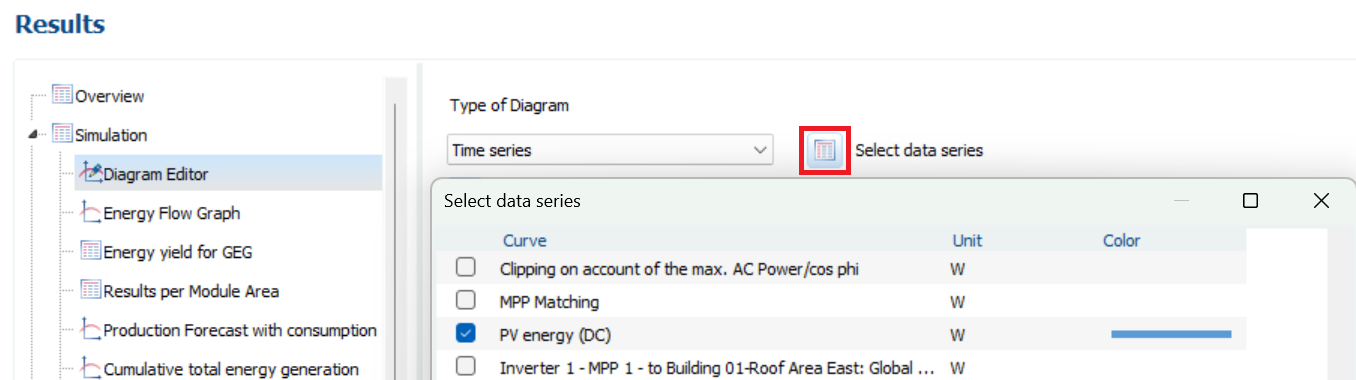

In the chart editor, select the "PV Energy (DC)" or "PV Energy (AC)" data series:

Select a sunny day and right-click, then choose "Copy" and "Copy Table to Clipboard":

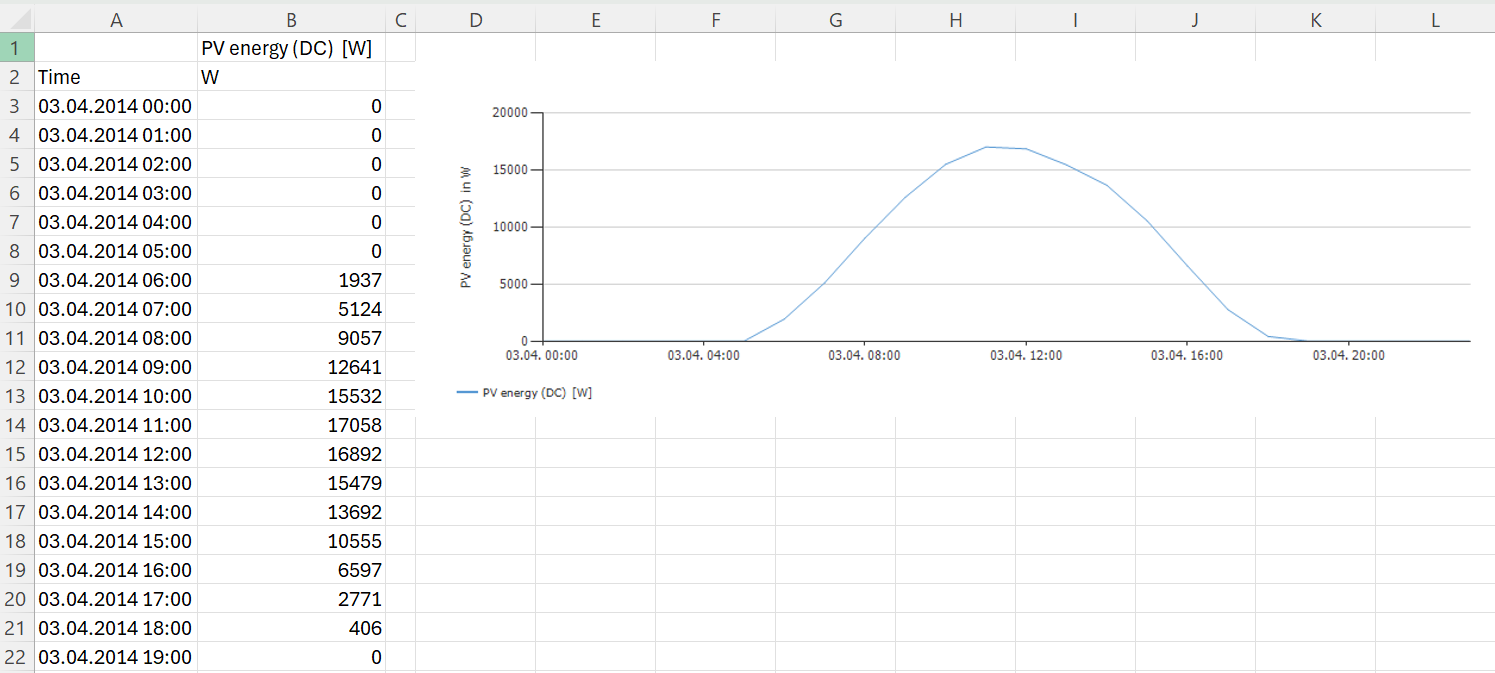

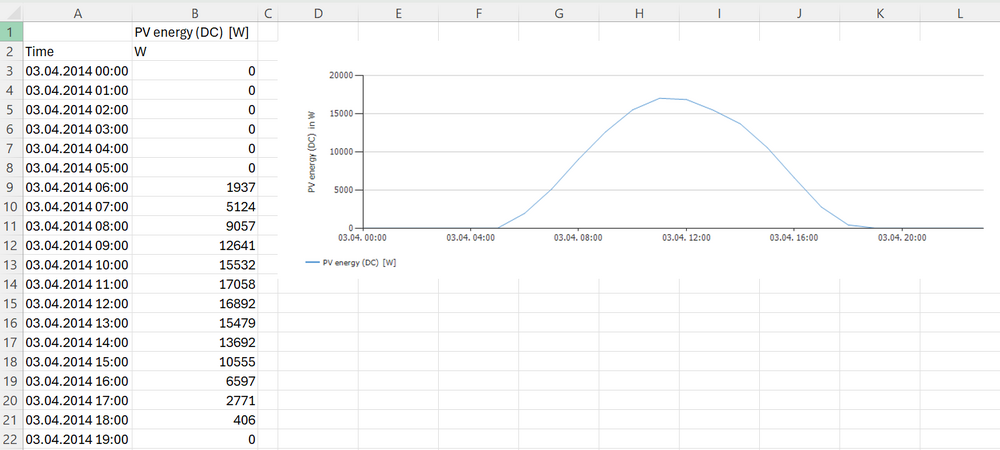

Paste the table and chart into Excel:
